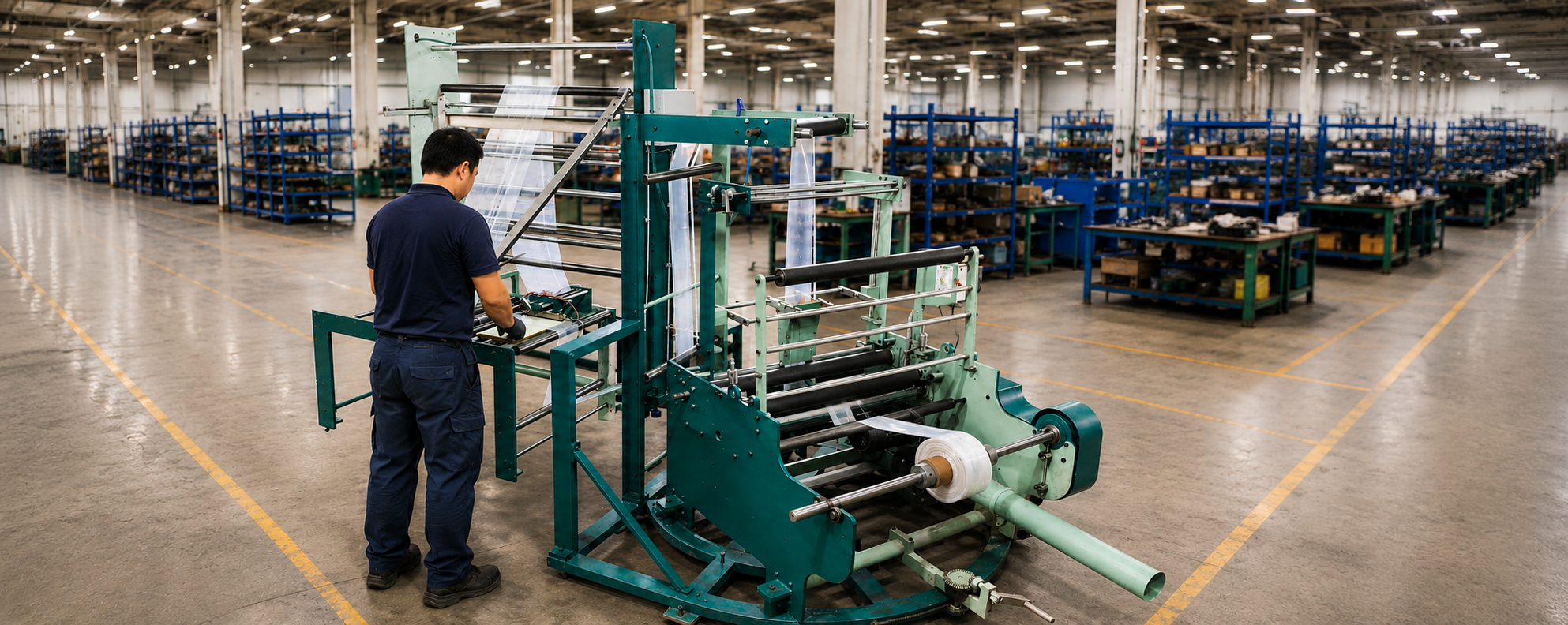

Sheet Tube Twist
Sheet To Tube Conversion Machinery Via Heat Seal For Marginless Seal (Side Seal Type) With Online Twist Gusset. For HM/LLDPE/PP/CPP/BOPP.
A robust machine with a simple design for easy settable operations, extremely user friendly.
| MODEL | STT 500 |
|---|---|
| SPEED | 108 MTR/MIN |
| MAX SHEET WIDTH | PLAIN FOLDING – 1150MM |
| WITH SEAL – 1000MM | |
| WITH GUSSET – 700MM(13″ TUBE) | |
| MAX SHEET ROLL DIA | 700 MM |
| MOTOR/DRIVE | 2HP |
| CONNECTED LOAD | 3 KW |
| DIMENSIONS (IN MM) | L-3500 x W-2100 x H-2200 |
| WEIGHT | 950 KG |
- Folding arrow made of SS & hard anodized aluminum idler for path.
- Simple study design with perfection for accurate results at high speed.
- Folding & rewinding structure on 12 mm heavy-duty steel plates.
- Vibration free working.
- Balanced nip rollers.
- Winder driver by AC Motors / VFD.
- Nip roll & winder drive by timing belt / pulley.
- Low maintainance.
- Electronic braking system.
- Airshaft
- Webaligner
