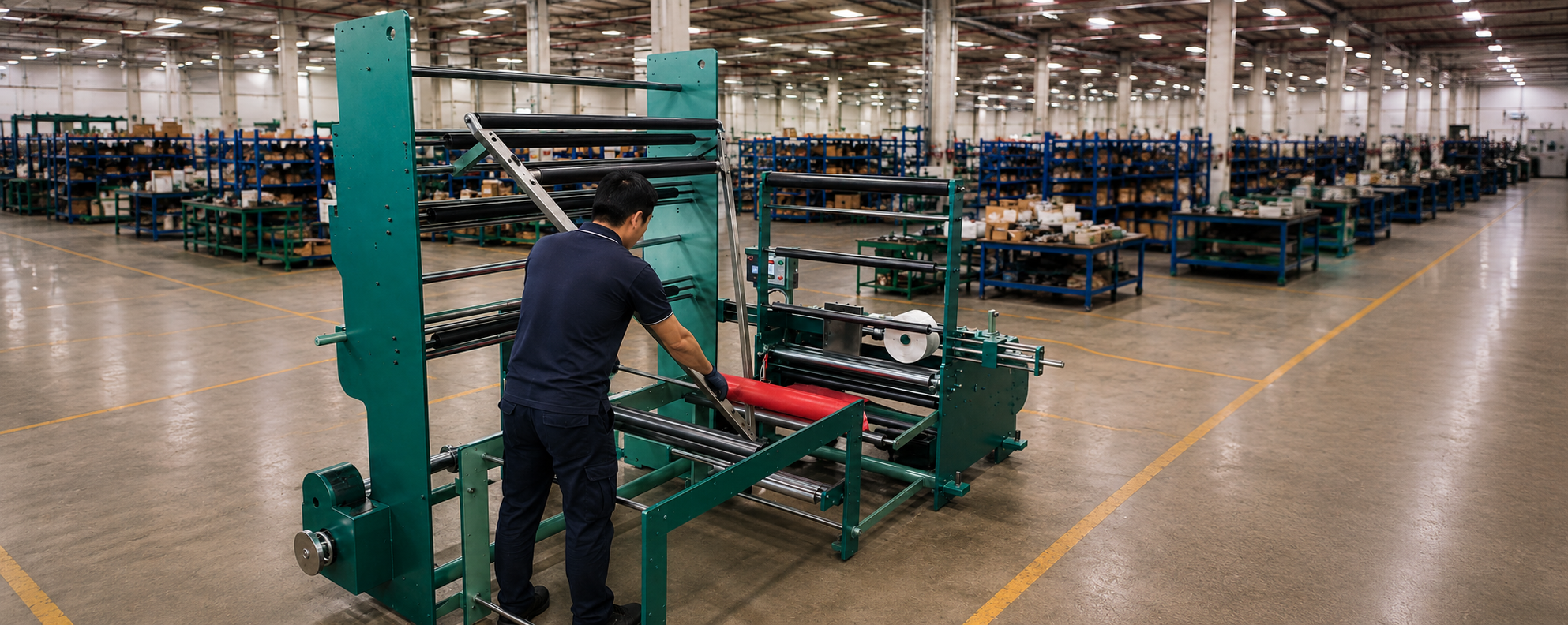

Multipurpose Offline Sheet Folder

All Products > Multipurpose Offline Sheet

Multipurpose Offline Sheet Folder

A Robust Machine With A Simple Design For Easy Settable Operations, Extremely User Friendly

  • COURIER BAG PRE-PREPARATION
  • Bread Bag
  • Diaper Bag
  • BOPP / HM / LD / PP - Sheet Foaming
  • Paper Folding & Sealing
  • C-Type Fold
  • Double Fold
MODELSF1200
SPEED108 MTR/MIN
MAXIMUM CUT SIZE1200 mm
MAXIMUM CUT WIDTH1150 mm
MAXIMUM SHEET ROLL DIAMETER700 mm
MOTOR / DRIVE2 HP
TOTAL CONNECTED LOAD
W / ROTARY SEAL
W / CONTINUOUS SEALER		1.5 KW
1.6 KW
DIMENSION
W / BOTTOM GUSSET 		L-3250 X W-1650 X H-2200
L-3250 X W-2150 X H-2200
WEIGHT W / BOTTOM GUSSET800 kg
  • Folding arrow made of SS & hard anodized aluminum idler for the path.
  • Simple study design with perfection for accurate results at high speed.
  • Folding & rewinding structure on 12 mm heavy-duty steel plates.
  • Vibration-free working.
  • Balanced nip rollers.
  • Winder driver by AC Motors / VFD.
  • Nip roll & winder drive by timing belt/pulley.
  • Low maintenance.
  • Bottom gusset
  • Side gusset in the tube (Bread Bag)
  • Continuous top seal.
  • Header insert with rotary knurl seal.
  • CB POD sealing for courier bag.
  • HMG for courier bags/security bags.
