Bottom Sealing Servo New

All Products > Bottom Sealing Servo New

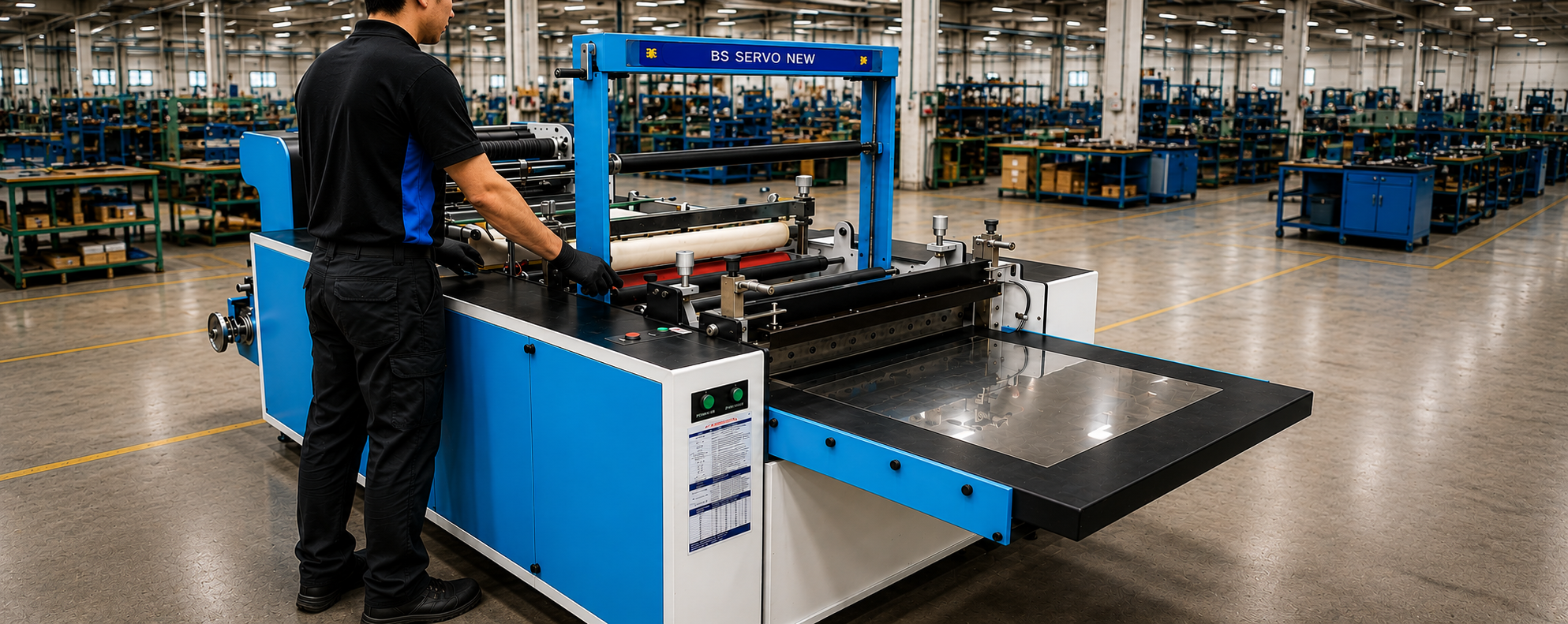

Bottom Sealing Servo New

One Antistatic With 4 electrodes, Pre-settable Counter, Temperature Controller & Electricals Housed In A Control Panel Assembly.

MODELBS SRV 600 NEWBS SRV 700 NEW
MACHINE SIZE600 mm (23.5”)700 mm (27.5”)
MAXIMUM CUT WIDTH 508 mm (20”)610 mm (24”)
MAXIMUM CUT LENGTH1300 mm1300 mm
MAXIMUM STROKES165/min165/min
MAX ROLL DIAMETER 800 mm800 mm
TOTAL CONNECTED LOAD4 kw (5.33HP)4.5 kw (6HP)
OVERALL DIMENSION W 1237 mm
L 3196 mm
H 1412 mm
W 1337 mm
L 3196 mm
H 1412 mm
Also available in 500 mm, 800 mm & 900 mm
  • Microprocessor controlled.
  • Set Length on keypad drawn by servo.
  • Mark sensor with colour changing light for critical job.
  • Seal/cutter top stop logic. (not in case of power failure)
  • Unwind speed synchronised with stroke and size.
  • Main speed control by as frequency drive.
  • Magnetic bag guides.
  • Punch Options: Online D-Punch / Euro / Butterfly /Round Hole
  • Online side gusset for Bread Bag
  • Perforated Sealer for Bread Bag
  • Wide width sealer for pouch type seal
  • Rotary Knurl Sealing
  • Extra Seal Station for specific jobs.
  • Heated Base for Heavy Gauge Gusseted Bag

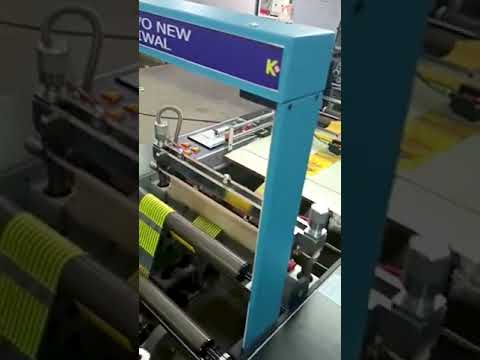

Watch Our Machine in Action

Machines That Drive Manufacturing Success

BOTTOM SEALING SERVO NEW

One Antistatic With 4 electrodes, Pre-settable Counter, Temperature Controller & Electricals Housed In A Control Panel Assembly.

PAPER MAILER BAG MACHINE

A Multifunctional, very easy-to-operate automatic paper mailer bag-making machine, can also be used for normal bottom seal jobs.

DD SERVO 6L 800

Double Decker Bottom Sealing Cutting Machine with 6 Individual unwinders. Max 9″ x 6 Lines, 12″ by 4 Lines & 29″ x 2 Lines Can run At A Time
