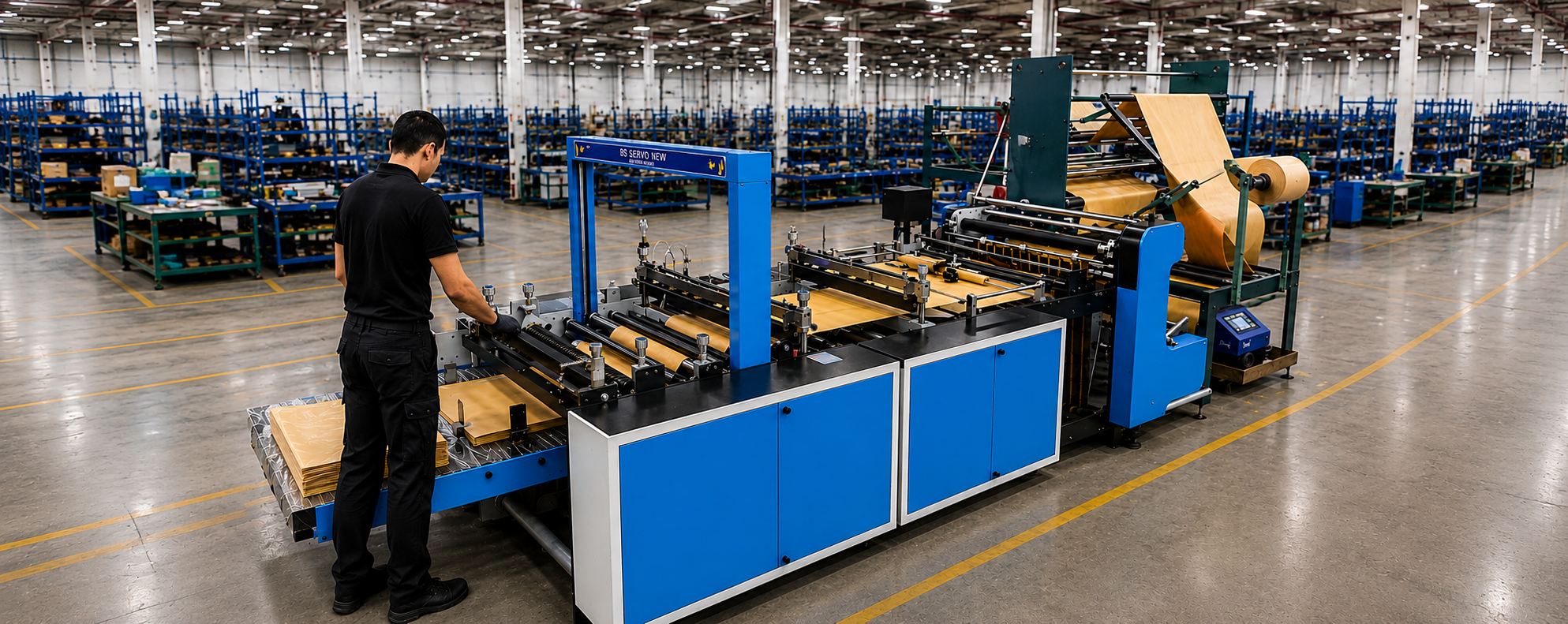

Paper Mailer Bag Machine

A multi-function, very easy-to-operate automatic paper mailer bag-making machine,
can also be used for normal bottom seal jobs.

MODELPAPER CB 700
MACHINE SIZE700 mm (27.5″)
MAXIMUM CUT WIDTH610 mm (24″)
MAXIMUM CUT LENGTH1300 mm
MAXIMUM STROKES90/min
MAX ROLL DIAMETER700 mm
TOTAL CONNECTED LOAD6.5 KW (8.2HP)
OVERALL DIMENSIONW 5480 mm
L 2000 mm
H 2200 mm
  • Microprocessor controlled.
  • Set length on keypad drawn by servo.
  • Mark sensor with color changing light for critical job.
  • Sealer/cutter top stop logic. (not in case of power failure)
  • Unwind speed synchronized with stroke and size.
  • Main speed control by ac frequency drive.
  • Magnetic bag guides.
  • Hot melt glue auto start/stop with release liner sensor.
  • Side guide in folding device for better adjustment of paper flapiness
  • System for using machine for normal bottom
    seal jobs.
  • Air shaft for folder.
  • Intermittent gluing for printed bags.

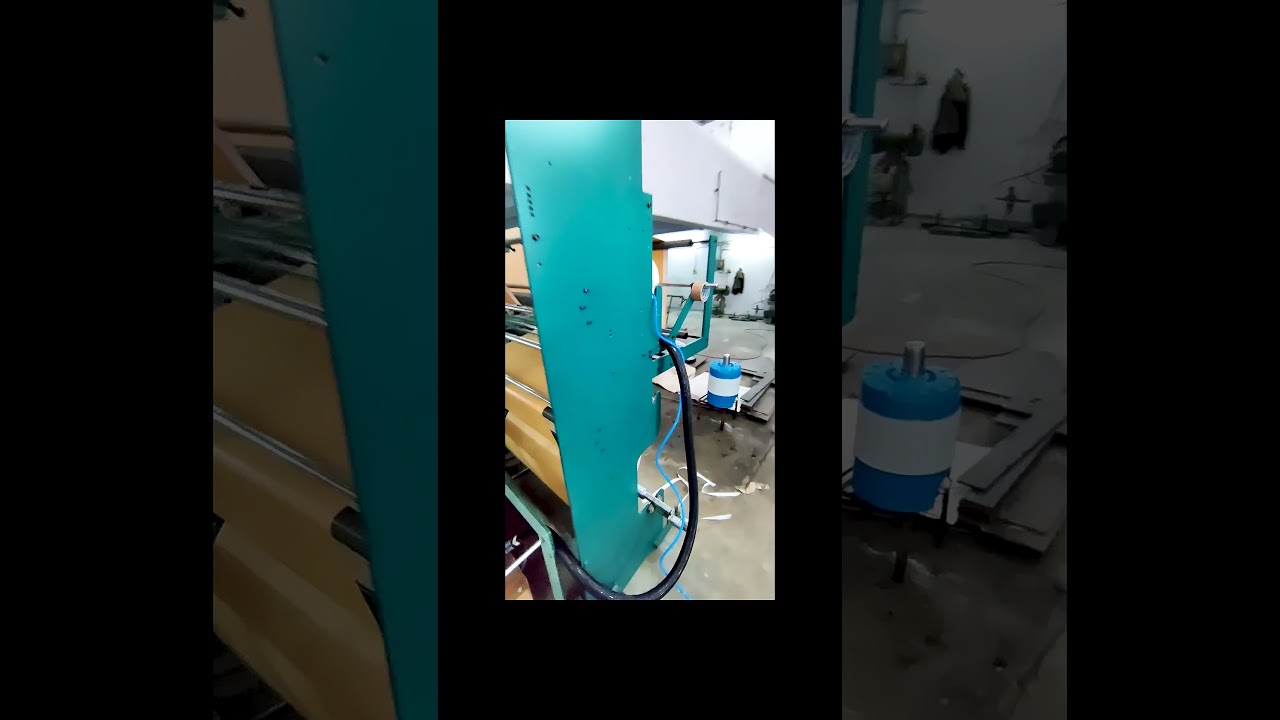

Watch Our Machine in Action

View all videos

Machines That Drive Manufacturing Success

BOTTOM SEALING SERVO NEW

One Antistatic With 4 electrodes, Pre-settable Counter, Temperature Controller & Electricals Housed In A Control Panel Assembly.

PAPER MAILER BAG MACHINE

A Multifunctional, very easy-to-operate automatic paper mailer bag-making machine, can also be used for normal bottom seal jobs.

DD SERVO 6L 800

Double Decker Bottom Sealing Cutting Machine with 6 Individual unwinders. Max 9″ x 6 Lines, 12″ by 4 Lines & 29″ x 2 Lines Can run At A Time
