New High - Speed Side Seal

All Products > New High – Speed Side Seal

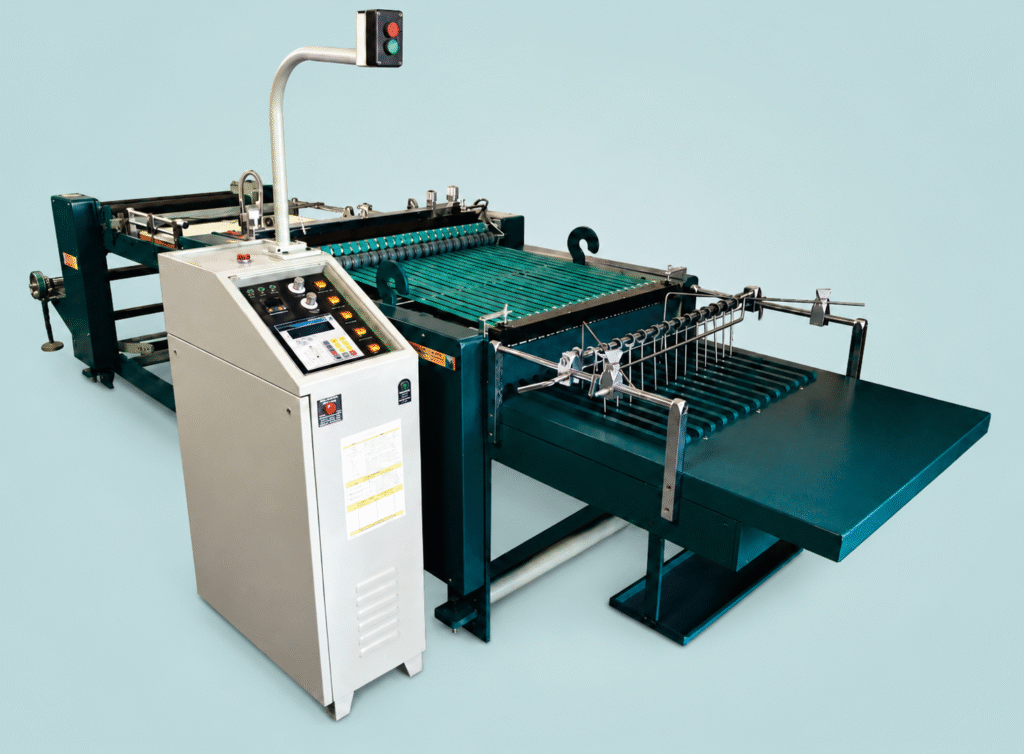

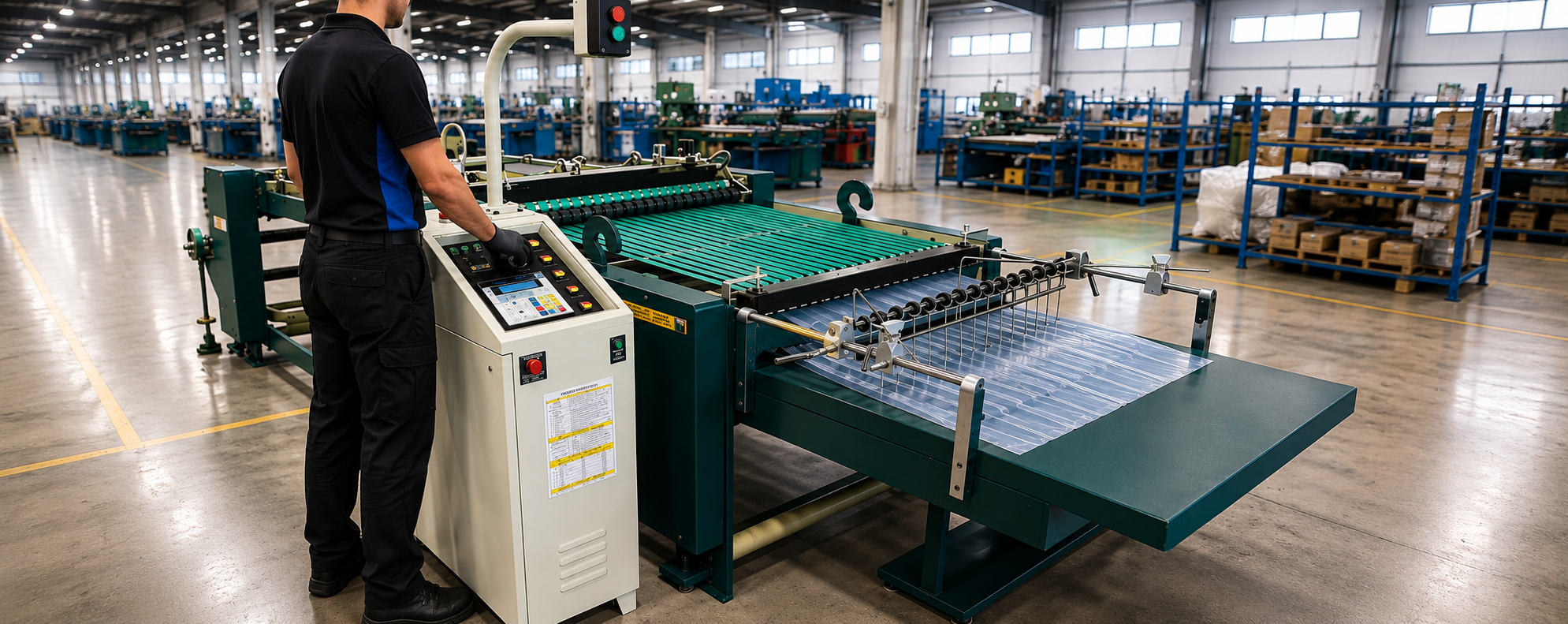

New High - Speed Side Seal

One antistatic with 4 electrodes, pre settable counter, temp. Controller & electricals housed in a control panel assembly.

MODELSS + SRV 600SS + SRV 700
MACHINE SIZE600 mm700 mm
MAXIMUM CUT WIDTH500 mm600 mm
MAXIMUM CUT LENGTH600 mm600 mm
MINIMUM CUT LENGTH65 mm 65 mm
MAXIMUM STROKES280/min280/min
MAX ROLE DIAMETER700 mm700 mm
TOTAL CONNECTED LOAD6.5 kw6.7 kw
OVERALL DIMENSIONW 1030 mm
L 4051 mm
H 1000 mm		W 1130 mm
L 4051 mm
H 1000 mm
Also available in 400 mm
  • Microprocessor controlled.
  • Set length on keypad drawn by servo.
  • Mark sensor with colour changing light for critical job.
  • Sealer/cutter top stop logic. (not in case of power failure)
  • Unwind speed synchronized with stroke and size.
  • Main speed control by AC frequency drive.
  • All movements via timing belts.
  • Minimum maintenance.
  • Vibration free working.
  • Easy setting. (all adjustments can be done from outside)
  • Conveyor drive by timing belt.
  • Dancer tension controlled.
  • Punch Options: Online D-Punch / Euro / Butterfly / Round Hole
  • Multiple Punch Hole for Nursery Bag
  • Flap, Tape & Bottom Gusset Combination Attachment
  • Continuous Perforation with Rotary Blade
  • Continuous Rotary Knurl Seal
  • BOPP Bag Attachments
  • Pneumatic Seal Station for Double Seal / Wide Seal
  • Hot Melt Glue Dispensing System for Courier Bags
  • Corner Seal / Trim (V-Shape) for Shrink Film
  • Sheet Folder – Online / Offline (Option for Header Insert with Rotary Knurl Seal & Bottom Gusset)
  • Perforation Sealer
