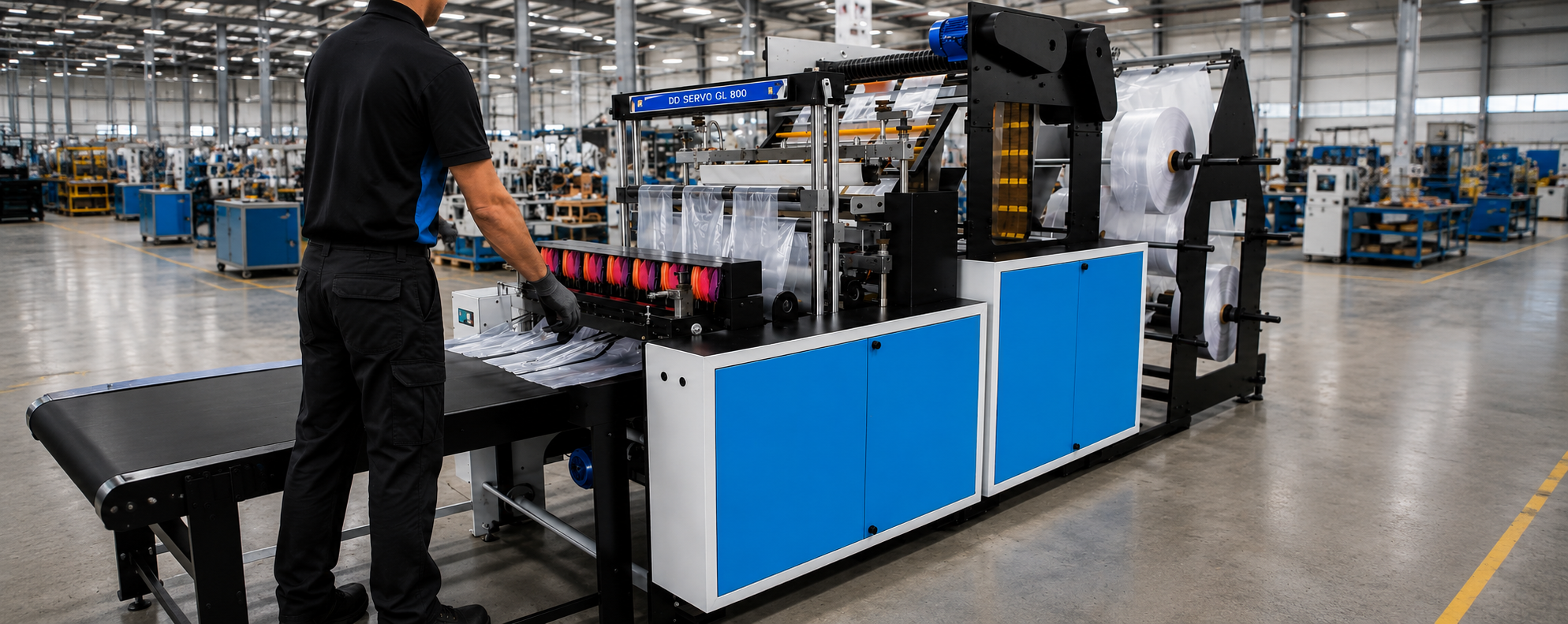

DD Servo 6L 800
Double Decker Bottom Sealing cutting
machine with 6 individual unwinders.
Max 9″ x 6 Lines, 12″ x 4 lines and
29″ x 2 Lines can run at a time.
| MODEL | DD SERVO 6L 800 |
|---|---|
| MACHINE SIZE | 800 mm (31.5”) |
| MAXIMUM CUT WIDTH | 711 mm (28”) |
| MAXIMUM CUT LENGTH | 1800 mm |
| MAXIMUM STROKES | 120/min |
| MAX ROLL DIAMETER | 800 mm |
| TOTAL CONNECTED LOAD | 9 kw (12HP) |
| OVERALL DIMENSION | W 1504 mm L 4955 mm H 1880 mm |
- Microprocessor controlled.
- Draw length by Panasonic Servo.
- Silicon sealing roller driven by Servo.
- All motion through timing belt.
- Sealer/cutter top stop logic. (not in case of power failure)
- All 6 Unwinder speed synchronized with stroke and size.
- All motors driven by ac frequency drive.
