BSSS Servo Combo

All Products > BSSS Servo Combo

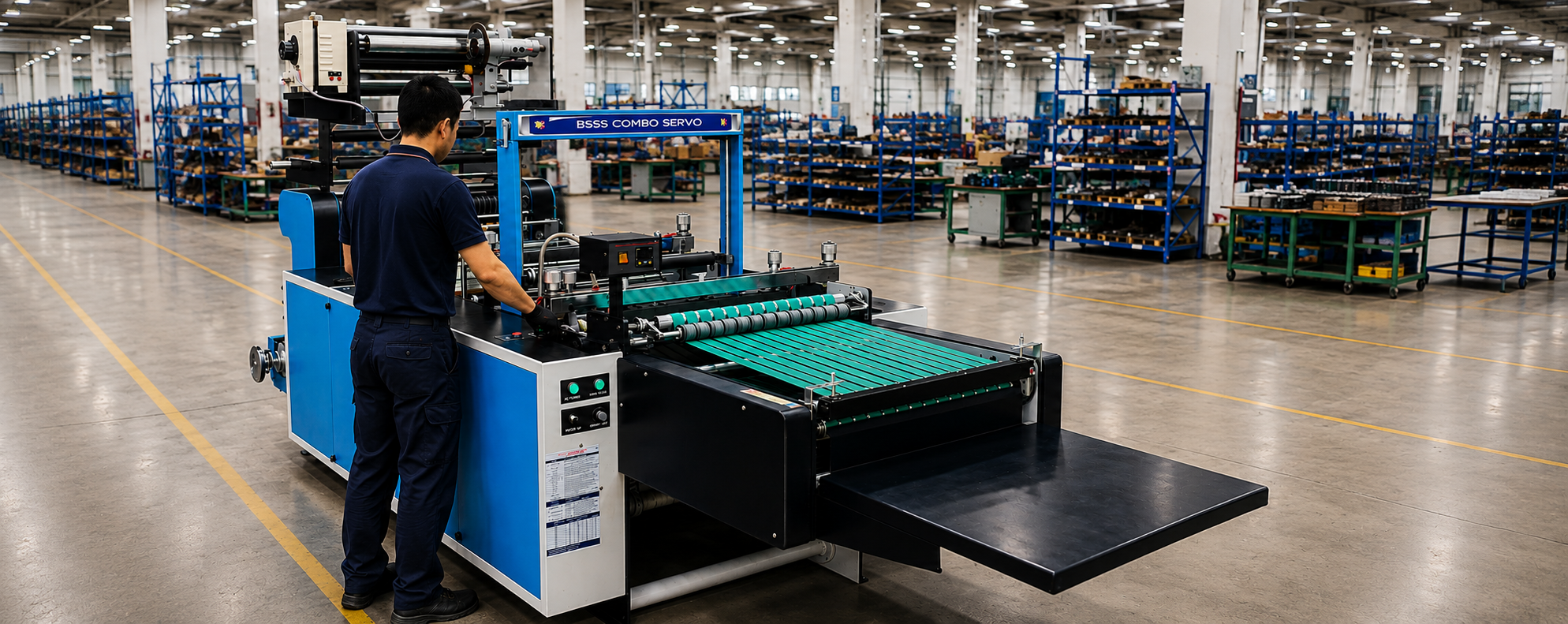

BSSS Servo Combo

Machine specially designed for Hanger Bags (multi-pocketed bags) with a combination of Bottom and Side Seal. Hot Cutter actuation control on Keypad. The machine can be used for vest bags (Jhabla) with added strength for Hot edge cut/seal.

MODELBSSS COMBO 600BSSS COMBO 700
MACHINE SIZE600 mm (24”)700 mm (27.5”)
MAXIMUM CUT WIDTH 508 mm (20”)610 mm (24”)
MAXIMUM CUT LENGTH600 mm600 mm
MAXIMUM STROKES180/min180/min
MAX ROLL DIAMETER 800 mm800 mm
TOTAL CONNECTED LOAD4.75 kw (6.33HP)5.5 kw (7.33HP)
OVERALL DIMENSION W 1237 mm
L 3953 mm
H 1412 mm		W 1337 mm
L 3953 mm
H 1412 mm
  • Microprocessor controlled.
  • Set length on keypad drawn by servo.
  • Mark sensor with color changing light for critical job.
  • Sealer/cutter top stop logic. (not in case of power failure)
  • Unwind speed synchronized with stroke and size.
  • Main speed control by ac frequency drive.
  • Magnetic bag guides.
