Gusset Machine

All Products > Gusset Machine

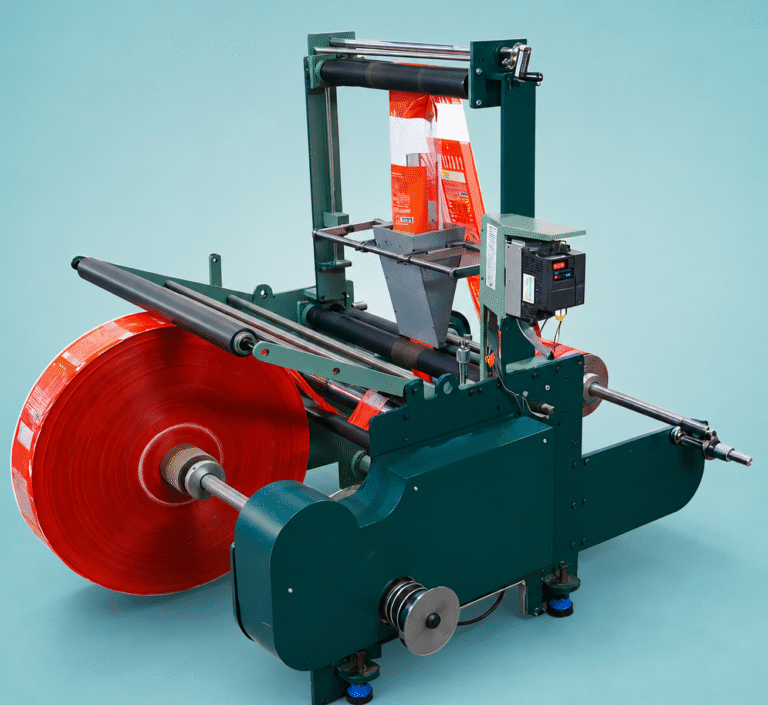

Gusset Machine

Standalone straight gusseting machine with 6 Gusset boxes for minimal wastage.

A robust machine with a simple design for easy settable operations, extremely user-friendly.

MODELGUSSET MACHINE
SPEED108 MTR/MIN
MAX TUBING WIDTH18″ TUBE (Max Gusset 4″)
MAX TUBE ROLL DIA700 mm
MOTOR/DRIVE2KW
CONNECTED LOAD2KW
DIMENSIONS (in mm)l-3500 X W-2100 X H-2200
WEIGHTApprox. 300 kg
  • Hard anodised aluminum idler for path.
  • Simple study design with perfection for accurate results at high speed.
  • Machine structure on 12 mm heavy-duty steel plates.
  • Vibration free working.
  • Balanced nip rollers.
  • Machine driver by AC Motors / VFD.
  • Nip roll & winder drive by timing belt / pulley.
  • Low maintenance.
  • Airshaft
  • Webaligner
