DD Servo 2L 900

All Products > DD Servo 2L 900

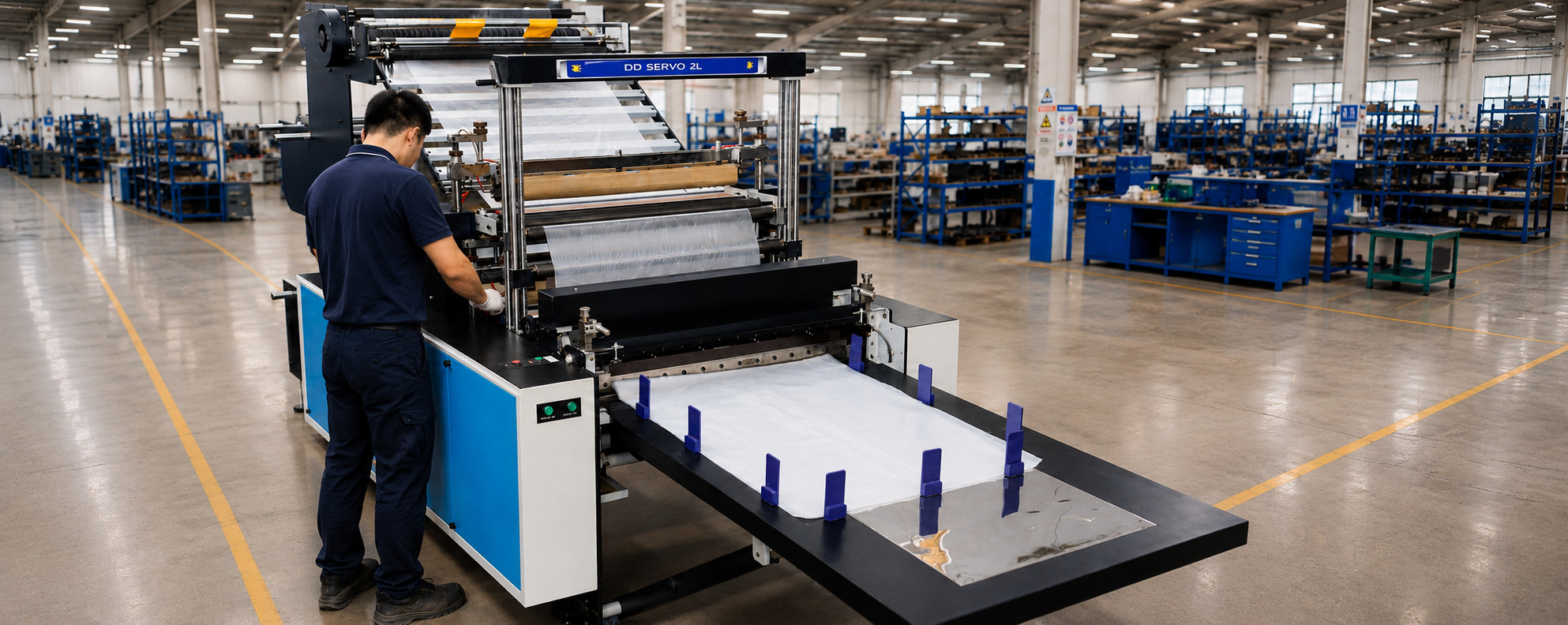

DD Servo 2L 900

Double Decker Bottom sealing cutting
machine with 2 individual unwinders.
Liner bag up to 32″ can run 2 lines.

MODELDD SERVO 2L 900
MACHINE SIZE900 mm (36”)
MAXIMUM CUT WIDTH 800 mm (31.5”)
MAXIMUM CUT LENGTH1800 mm
MAXIMUM STROKES100/min
MAX ROLL DIAMETER 800 mm
TOTAL CONNECTED LOAD9 kw (12HP)
OVERALL DIMENSION W 1604 mm
L 4427 mm
H 1799 mm
  • • Microprocessor controlled.
    • Draw length by Panasonic Servo.
    • Silicon sealing roller driven by Servo.
    • All motion through timing belt.
    • Sealer/cutter top stop logic. (not in case of power failure)
    • Both Unwinder speed synchronized with stroke and size.
    • All motors driven by ac frequency drive.
