Side Seal Servo New
All Products > Side Seal Servo New

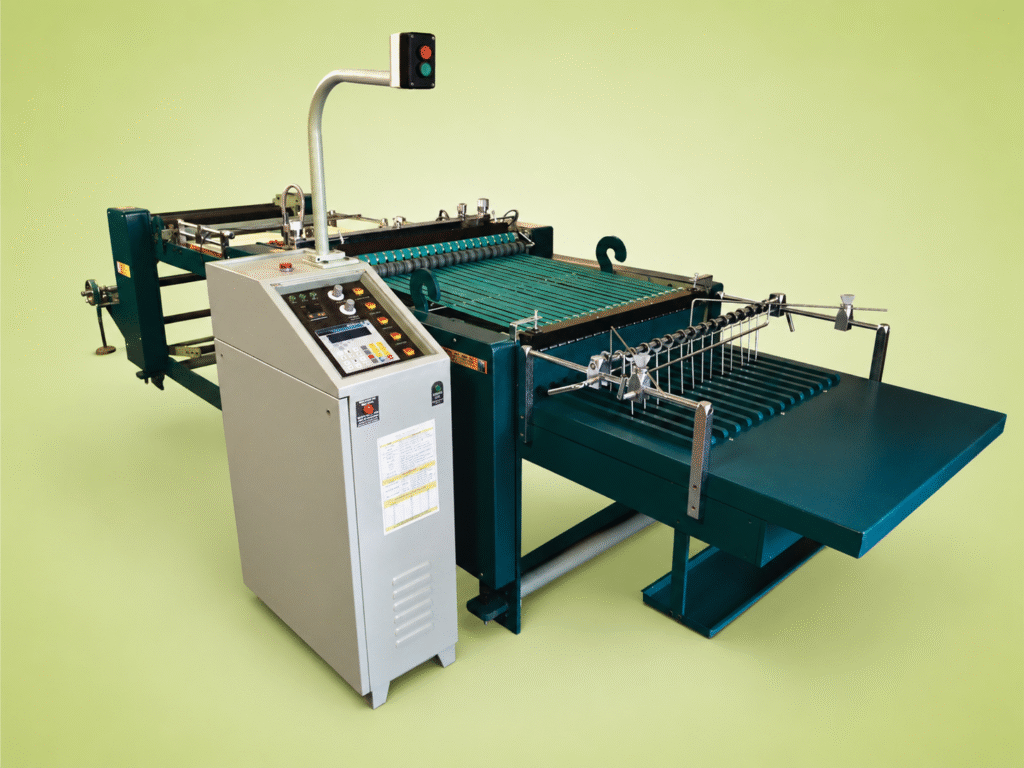

Side Seal Servo New
One Antistatic With 4 electrodes, Pre-settable Counter, Temperature Controller & Electricals Housed In A Control Panel Assembly.Â
| MODEL | SS SRV 600 | SS SRV 700 | SS SRV 800 |
|---|---|---|---|
| MACHINE SIZE | 600 mm | 700 mm | 800 mm |
| MAXIMUM CUT WIDTH | 550 mm | 650 mm | 750 mm |
| MAXIMUM CUT LENGTH | 600 mm | 600 mm | 600 mm |
| MAXIMUM STROKES | 210/min | 210/min | 210/min |
| MAX ROLL DIAMETER | 700 mm | 700 mm | 700 mm |
| TOTAL CONNECTED LOAD | 4.1 kw | 4.5 kw | 4.9 kw |
| OVERALL DIMENSION | W 1030 mm L 4051 mm H 1000 mm | W 1130 mm L 4051 mm H 1000 mm | W 1230 mm L 4051 mm H 1000 mm |
| Also available in 400 mm & 900 mm | |||

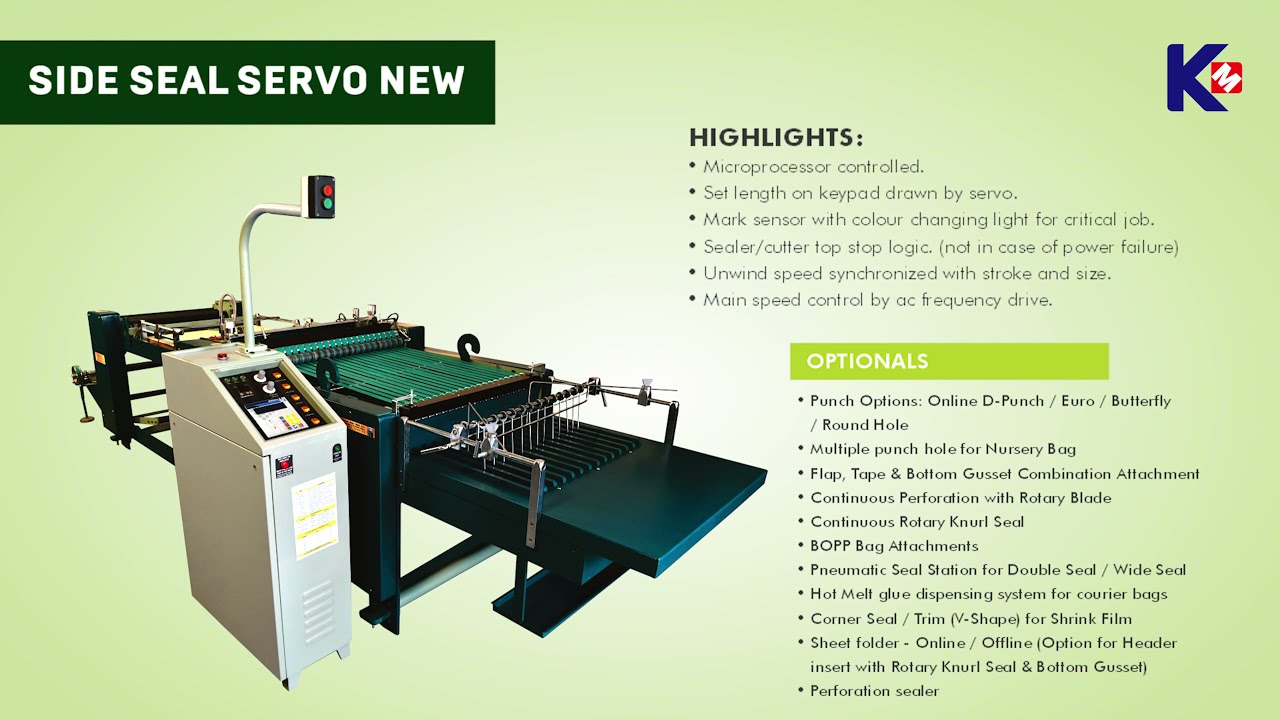

- Microprocessor controlled.
- Set length on keypad drawn by a servo.
- Mark the sensor with color-changing light for the critical job.
- Sealer/cutter top-stop logic. (not in case of power failure)
- Unwind speed synchronized with stroke and size.
- Main speed control by ac frequency drive.
- Minimum maintenance.
- Vibration-free working.
- Easy setting. (all adjustments can be done from outside)
- Conveyor drive by the timing belt.
- Dancer tension controlled.
- Punch Options: Online D-Punch/ Euro / Butterfly /Round Hole
- Multiple punch hole for Nursery Bag
- Flap, Tape & Bottom Gusset Combination Attachment
- Continuous Perforation with Rotary Blade
- Continuous Rotary Knurl Seal
- BOPP Bag Attachments
- Pneumatic Seal Station for Double Seal / Wide Seal
- Hot Melt glue dispensing system for courier bags
- Corner Seal / Trim (V-Shape) for Shrink Film
- Sheet folder - Online/Offline (Option for Header insert with Rotary Knurl Seal & Bottom Gusset)
- Perforation sealer

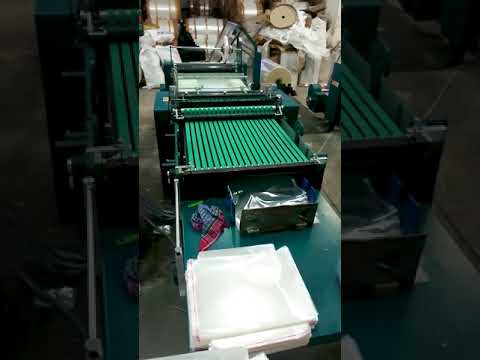

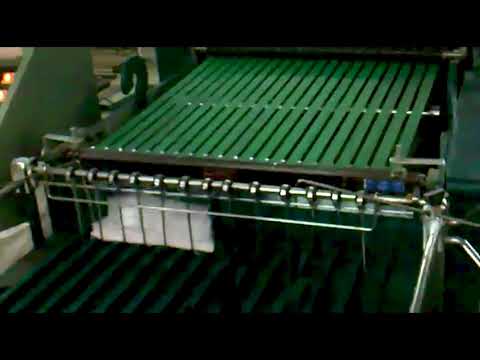

Videos of Side Seal Servo New
